Forged – Bolted / Welded / Pressure Seal Bonnet
- Size: ½” – 2” (DN 15 – DN 50)
- Pressure: ASME 150# – 2500#
- Materials: Forged Carbon Steel, Low Temperature Forged Carbon Steel, Forged Stainless Steel, Forged Duplex & Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy & Inconel
- Standards: ASME B16.34 / API 602 / BS 5352 / API 598
Forged – Bolted / Welded / Pressure Seal Bonnet
FEVISA Valves has very extended experience in manufacturing of Forged Globe Valves.
Size: ½” up to 2“(DN 15 up to DN 50)
Pressure Rating: ASME 150# to 2500#
Materials: Forged Carbon Steel, Low Temperature Forged Carbon Steel, Forged Stainless Steel, Forged Duplex Stainless Steel, Forged Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.

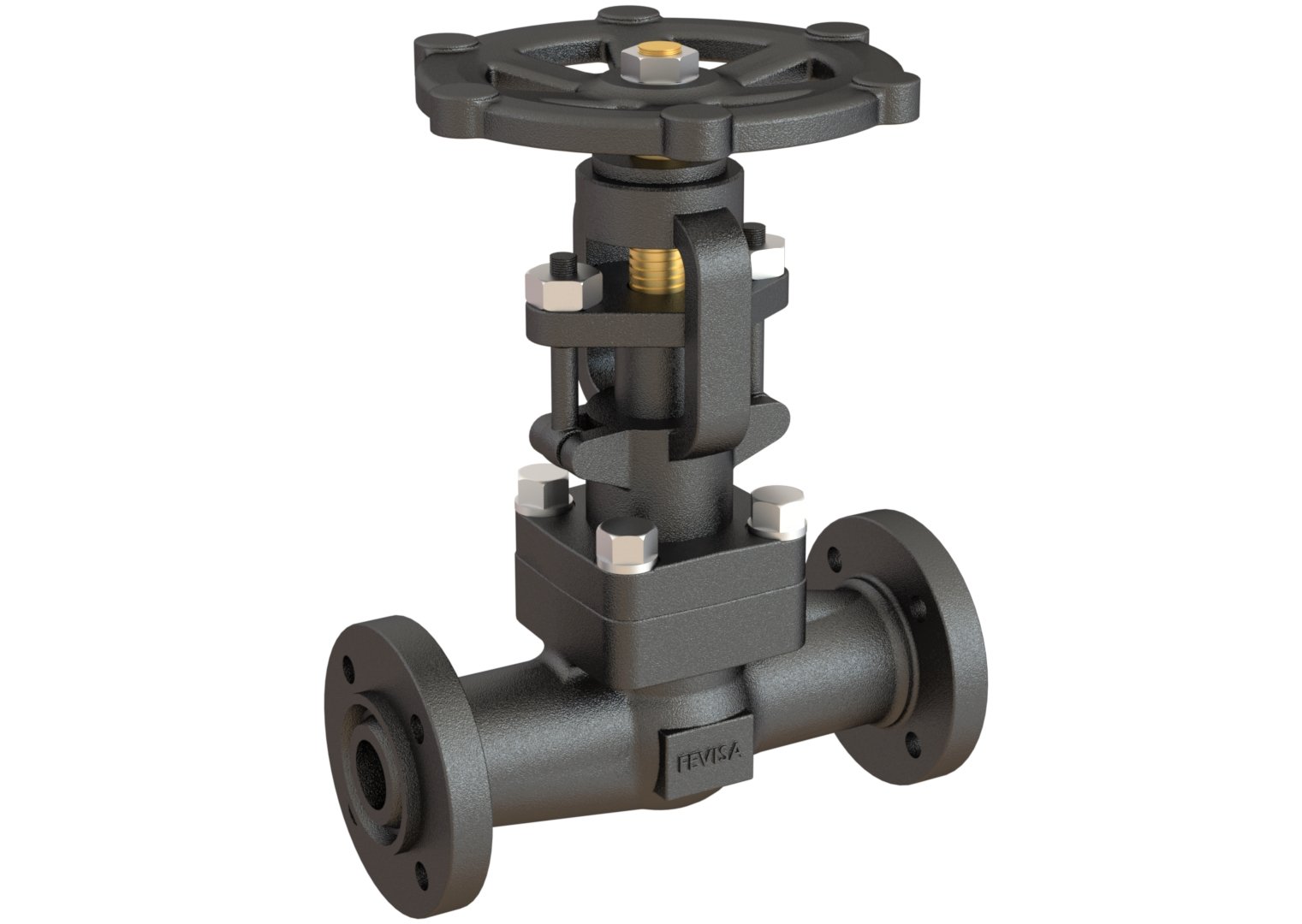

End Connection: Flanged RF, FF, RTJ, BW, NPT (F & M), SW Ends
Operator / Actuator: Hand wheel Operated
Specification & Standards:
- Design – ASME B16.34 / API 602, BS 5352
- Face to Face – ASME B16.10
- End to End – ASME B16.10
- End Flange – ASME B16.5
- BW End – ASME B16.25
- SW End – ASME B16.11
- Screwed Ends – ASME – ANMEB B1.20.1
- Test – API598
- Special – NACE MR-01-75
FEVISA delivers high-quality industrial valves expertise across oil & gas, petrochemical, power, water, marine, and mining industries.
Features:

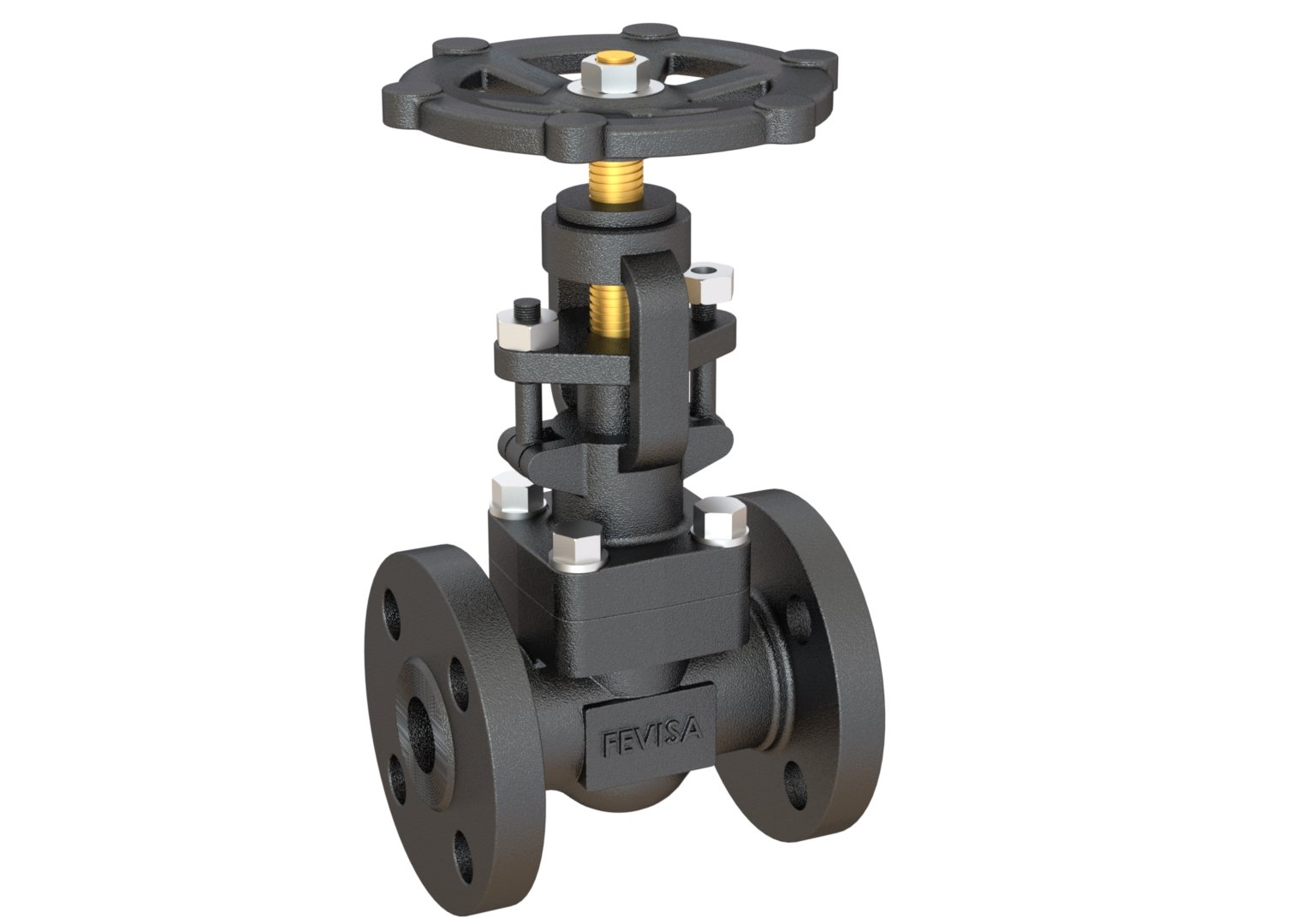

Bolted Bonnet with spiral-wound gasket, Threaded and seal Welded Bonnet or threaded and Pressure Seal Bonnet
Outside Screw and Yoke (OS&Y), Rising Stem, Integral Backseat, Integral Body Flanges(as option), Two Piece Self-aligning Packing Gland
Full port or Conventional Port
Plug Type Disc/Conic Disc

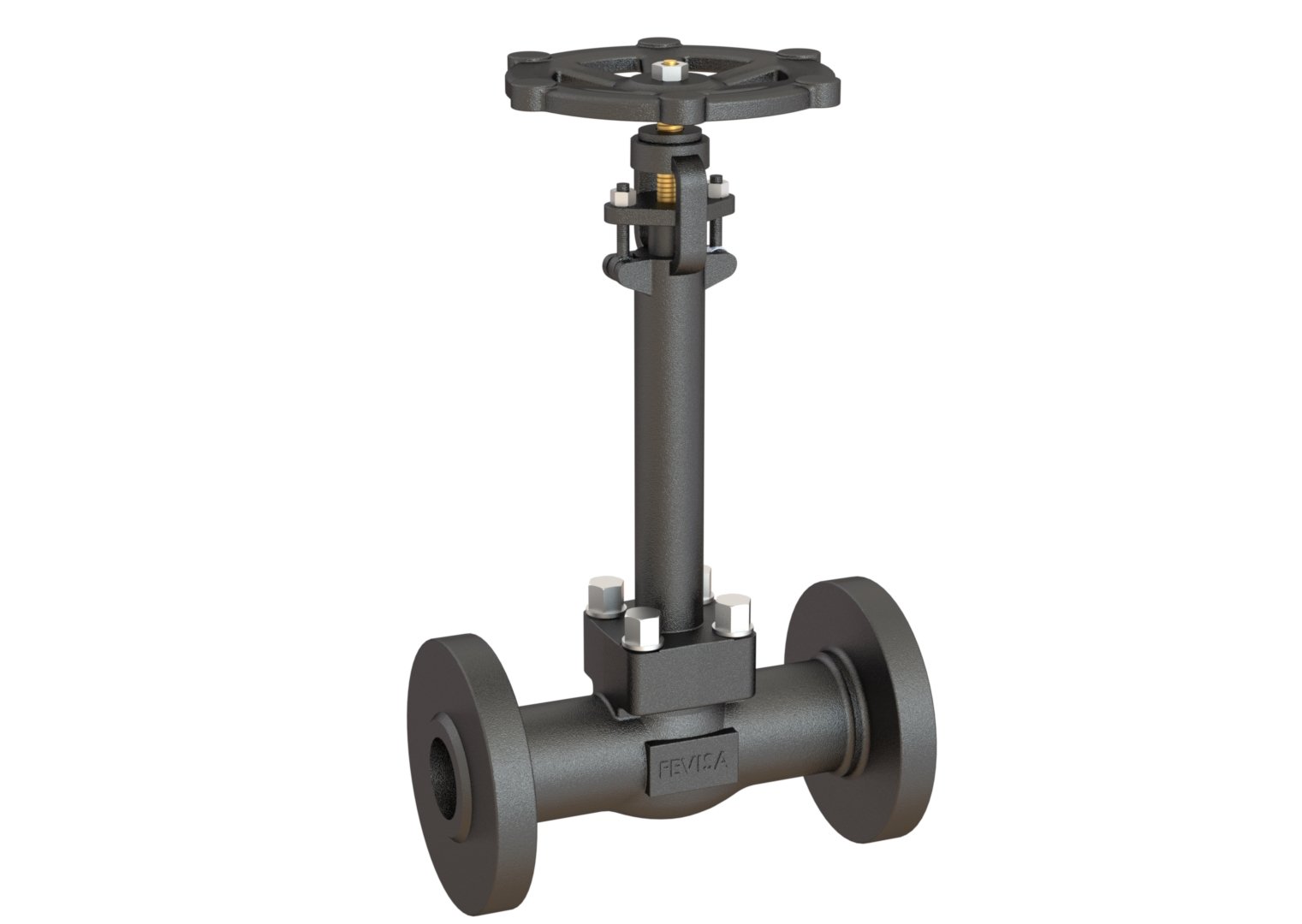

Extended Bonnet For Cryogenic Services
