Cast – Bolted / Welded / Pressure Seal Bonnet
- Size: ½” – 2” (DN 15 – DN 50)
- Pressure: ASME 150# – 2500#
- Materials: Forged Carbon Steel, Low Temperature Forged Carbon Steel, Forged Stainless Steel, Forged Duplex & Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy & Inconel
- Standards: ASME B16.34 / API 602 / BS 5352 / API 598

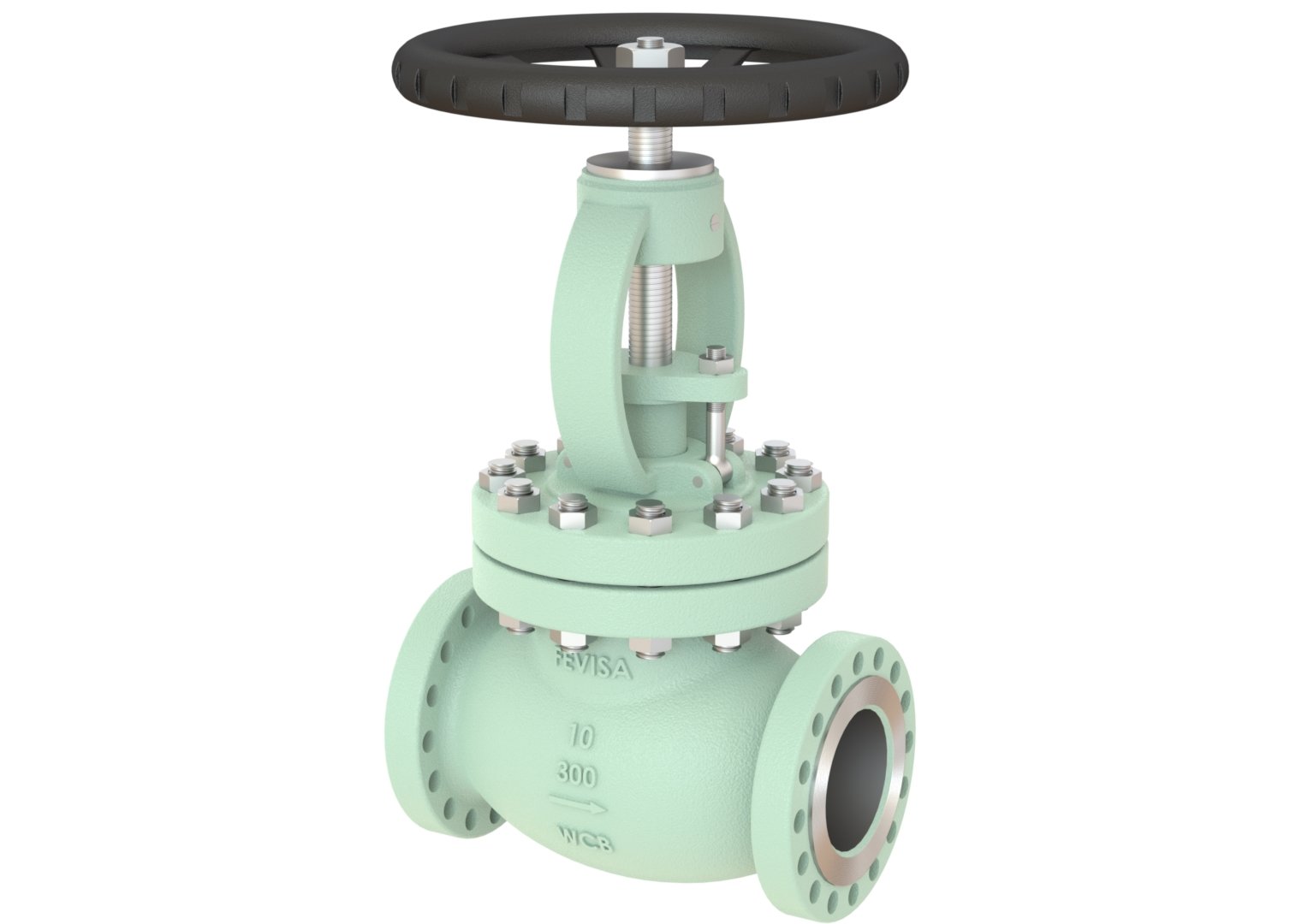

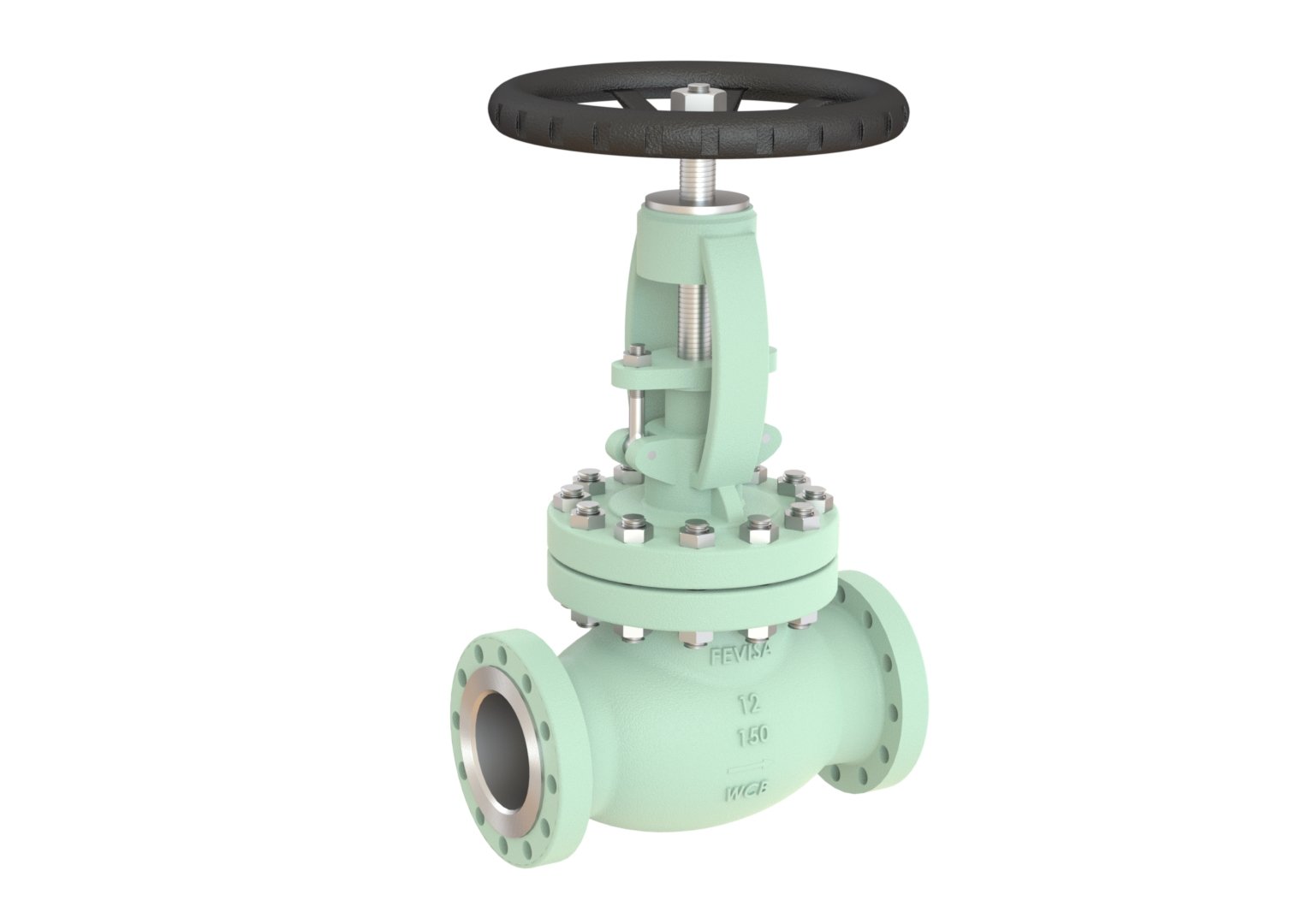

Cast – Bolted / Welded / Pressure Seal Bonnet
FEVISA Valves has very extended experience in manufacturing of Cast Steel Globe Valves
Size: 2” to 60“(DN 50 to DN 1500)
Pressure Rating: ASME 150#, 300#, 600#, 900#, 1500#, 2500#
Materials: Carbon Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.
End Connection: Flanged FF, RF, RTJ, BW Ends
Operator / Actuator: Hand wheel Operated & Gear Operated
Specification & Standards:
- Design – ASME B16.34 /BS1873
- Face to Face – ASME B16.10
- End to End – ASME B16.10
- End Flange – ASME B16.5
- BW End – ASME B16.25
- Test – API598
- Special – NACE MR-01-75
- Special – NACE MR-01-75
FEVISA delivers high-quality industrial valves expertise across oil & gas, petrochemical, power, water, marine, and mining industries.
Features:

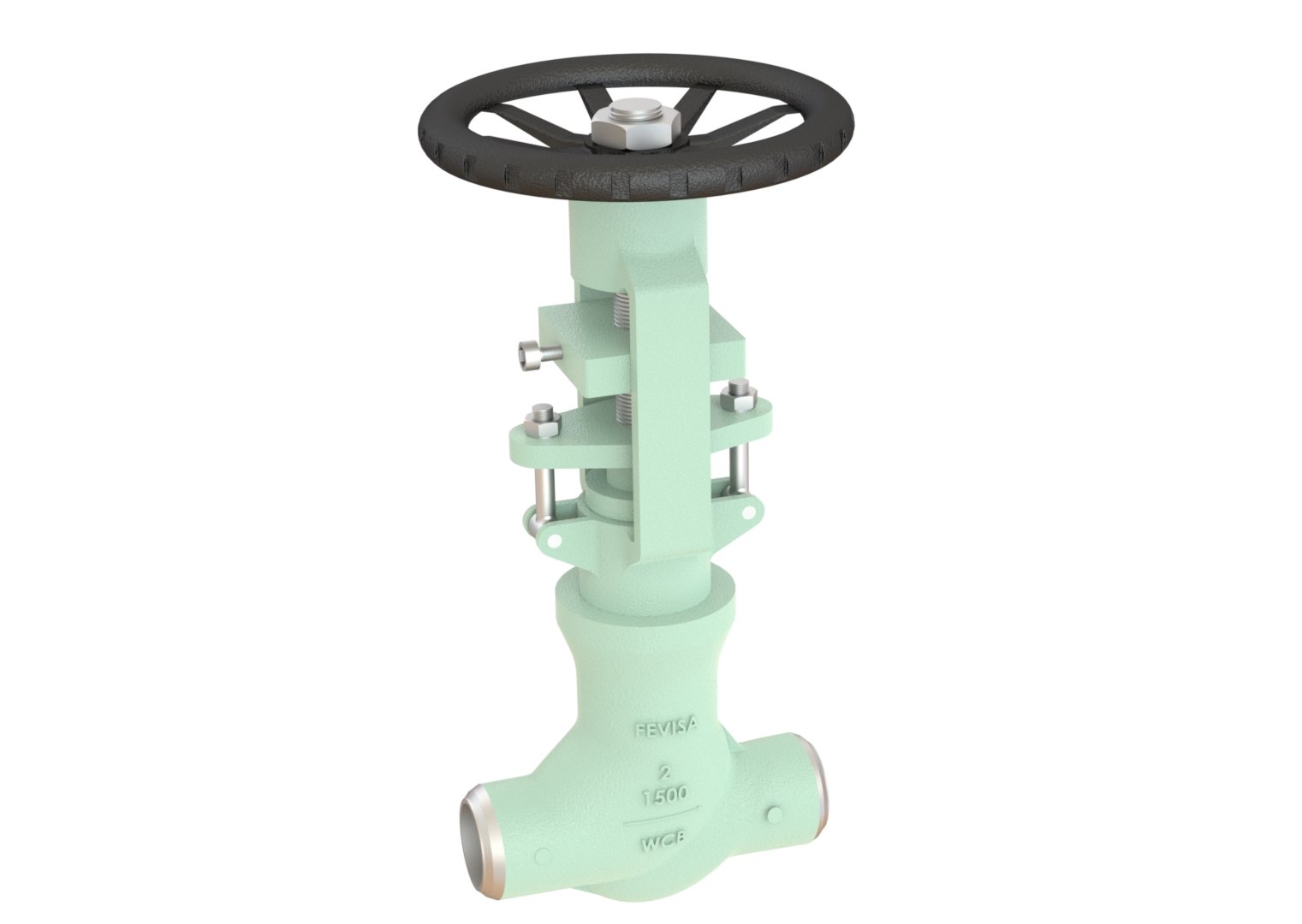

Bolted Bonnet with spiral-wound gasket, Threaded and seal Welded Bonnet or threaded and Pressure Seal Bonnet
Outside Screw and Yoke (OS&Y), Rising Stem, Integral Backseat, Integral Body Flanges(as option), Two Piece Self-aligning Packing Gland
Full port or Conventional Port
Plug Type Disc/Conic Disc
Extended Bonnet For Cryogenic Services
