Cast – Bolted / Welded / Pressure Seal Bonnet
- Size: 2” – 60” (DN 15 – DN 1500)
- Pressure: ASME 150# – 2500#
- Materials: Carbon Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex & Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy & Inconel
- Standards:ASME B16.34 / API 600 / ASME B16.10 / ASME B16.5 / ASME B16.25 / API 598
Cast – Bolted / Welded / Pressure Seal Bonnet
FEVISA Valves has very extended experience in manufacturing of Cast Gate Valves
Size: 2” up to 60“(DN 15 up to DN 1500)
Pressure Rating:ASME 150#,300#,600#,900#,1500#, 2500#
Materials: Carbon Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.
End Connection: Flanged RF, FF, RTJ, BW
Operator / Actuator: Hand wheel, Gear, Actuator (Pneumatic & Motorized
Specification & Standards:
- Design – ASME B16.34 / API 600
- Face to Face – ASME B16.10
- End to End – ASME B16.10
- End Flange – ASME B16.5
- BW End – ASME B16.25
- Test – API598
- Special – NACE MR-01-75
FEVISA delivers high-quality industrial valves expertise across oil & gas, petrochemical, power, water, marine, and mining industries.
Features:

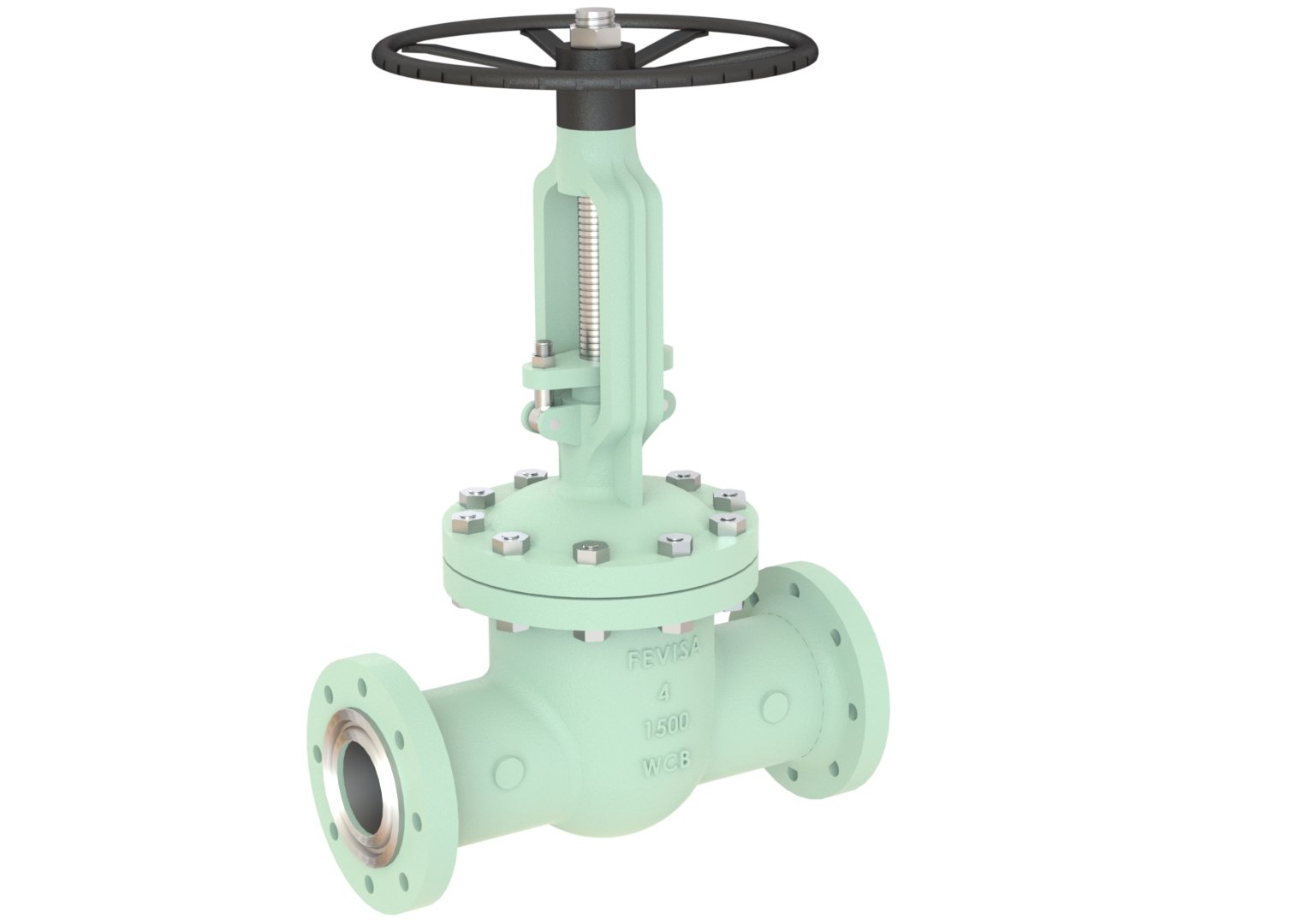

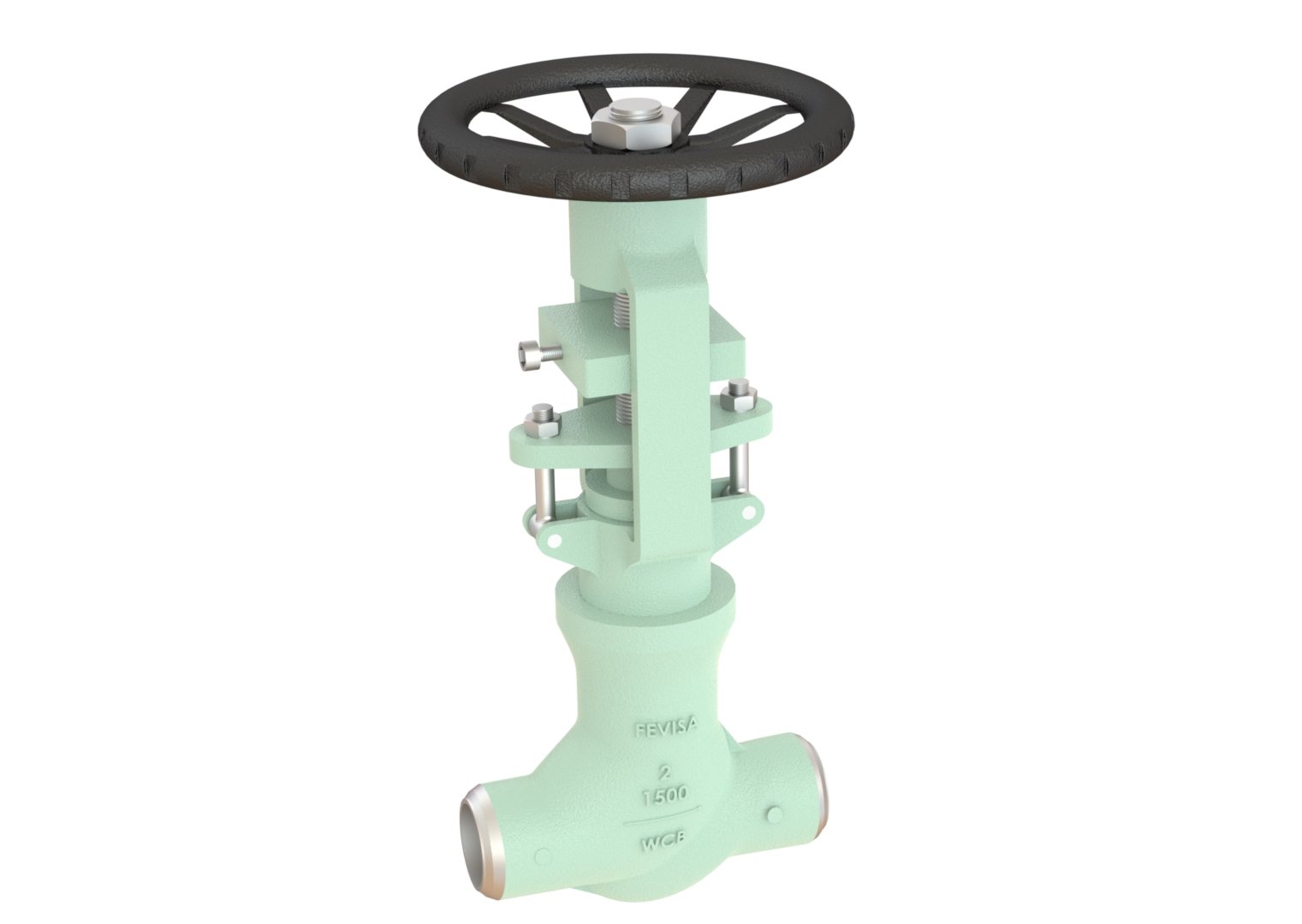

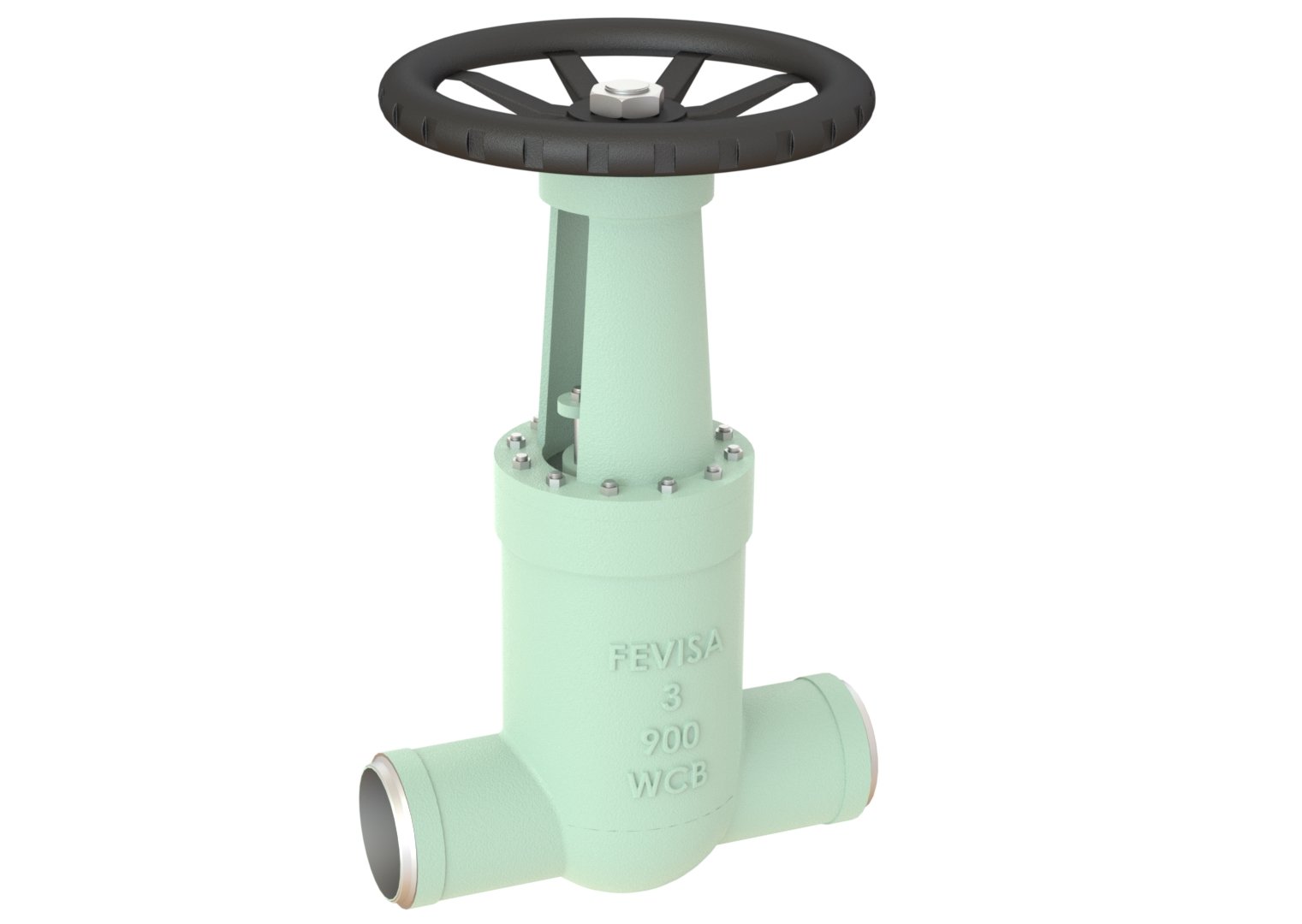

Bolted Bonnet with spiral-wound gasket, Threaded and seal Welded Bonnet or threaded and Pressure Seal Bonnet
Solid Wedge / Flexible Wedge
Full port or Conventional Port
Outside Screw and Yoke (OS&Y), Rising Stem
Extended Bonnet For Cryogenic Services
Locking Device Optional / By pass on Request
