Jacketed Ball Valves
- Size:½” – 8” (DN 15 – DN 200)
- Pressure: ASME 150# – 300#
- Materials: Carbon Steel, LTCS, Stainless Steel, Duplex, Super Duplex, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy & Inconel
- Standards: ASME B16.34 / API 6D / ASME B16.10 / ASME B16.5 / ASME B16.25 / API 598 / API 6D / API 607 / API 6FA

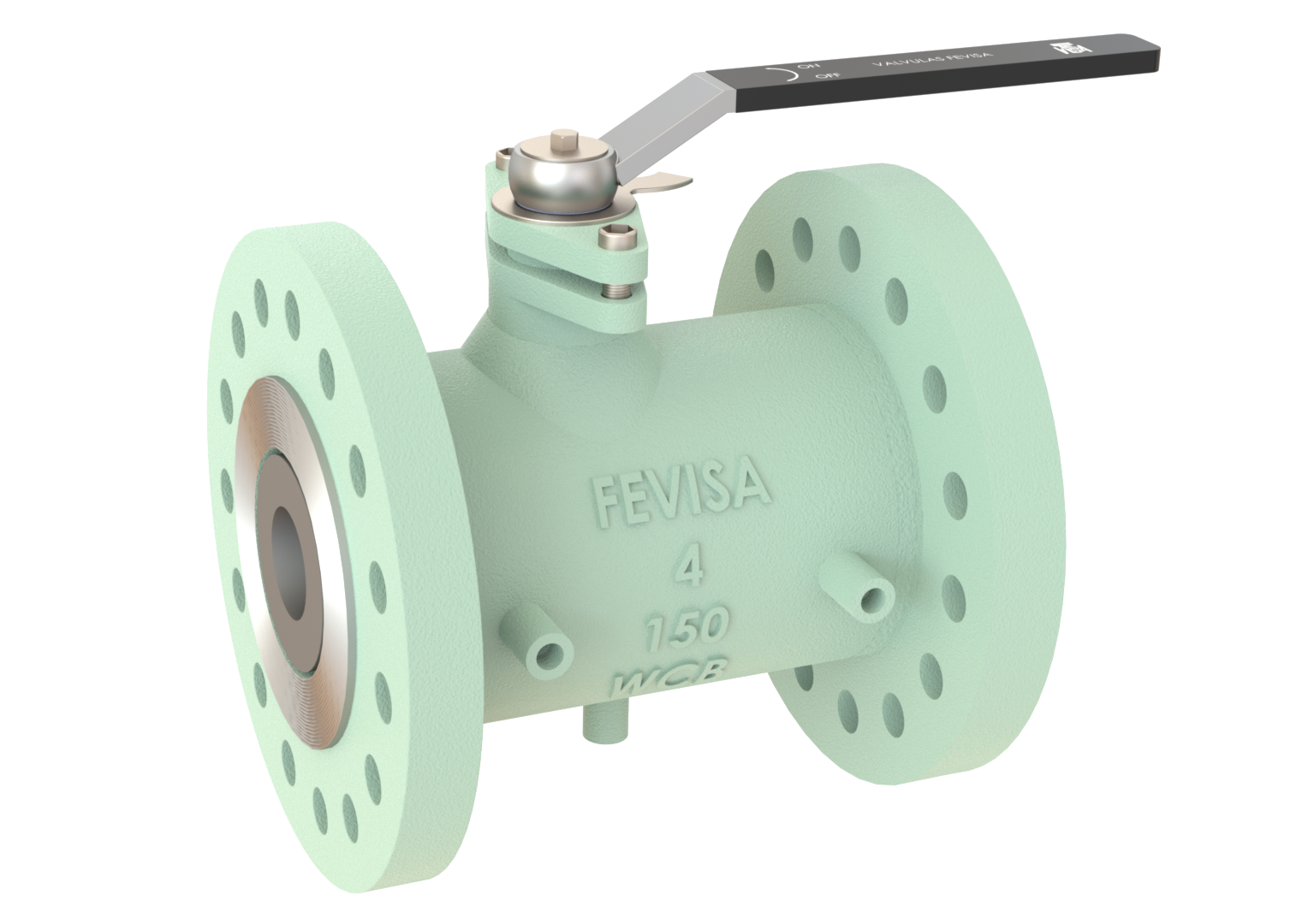

Jacketed Ball Valves
Jacketed Ball Valves are designed for reliable flow control where process temperature must be maintained. Featuring a surrounding jacket for heating or cooling, they help prevent media solidification and ensure smooth operation in demanding applications such as chemical, petrochemical, pharmaceutical, paint and adhesive industries.
FEVISA Valves has very extended experience in manufacturing of Jacket Ball Valves
Size 1/2” to 8“(DN 15 to DN 200)
Pressure Rating: ASME 150#, 300#
Materials: Forging and Casting Type – Carbon Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.
Seating: Soft Seated (PTFE/RPTFE /PEEK/NYLON/DEVLON) and Metal Seated
End Connection: Flanged FF/RF/RTJ, BW Ends
Operator: Lever/Wrench
Specification & Standards:
- Design – ASME B16.34/API 6D
- Face to Face – ASME B16.10/API 6D
- End Flange – ASME B16.5
- BW End – ASME B16.5
- Test – ASME B16.25
- Fire Safe Test –API607/API6FA
- Special – NACE MR-01-75
FEVISA delivers high-quality industrial valves expertise across oil & gas, petrochemical, power, water, marine, and mining industries.
Features:
Bolted Body – Two Piece
Bore Type – Reduced Bore and Full Bore
Anti- Static Device
Blow- Out Proof Stem
Fire Safe Design
